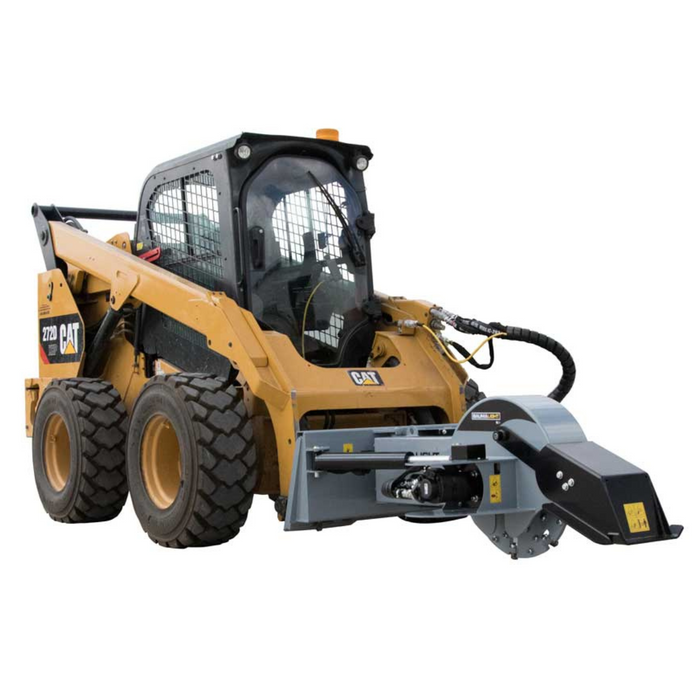

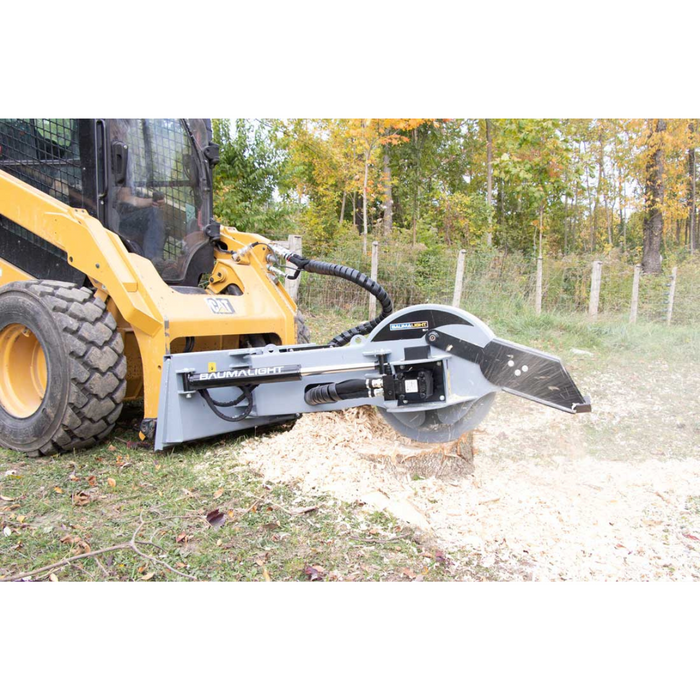

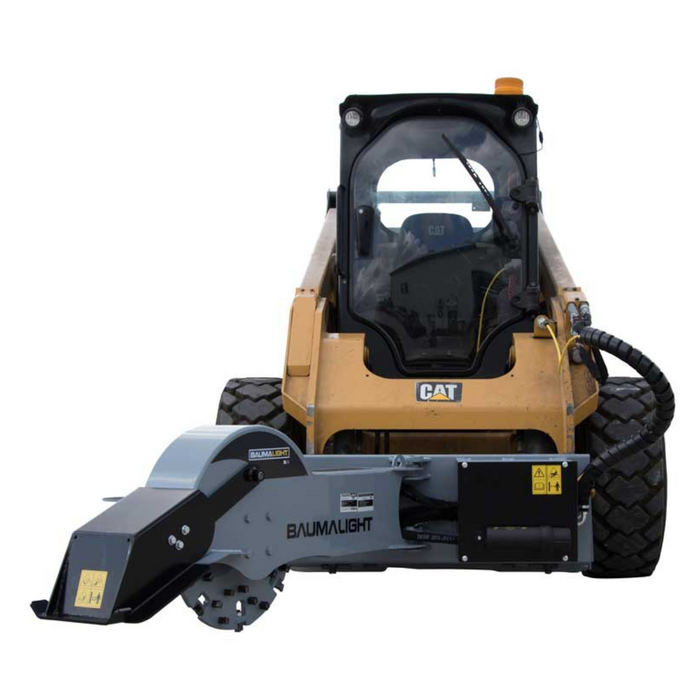

Baumalight S24 Stump Grinder With Swing Cylinder for Skid Steers

Manufacturer: Baumalight
Availability:
In Stock
Availability:
In Stock
Availability:
In Stock
Availability:
In Stock
Availability:
In Stock
Availability:
In Stock
30-Day Satisfaction Guarantee
Full Manufacturer Warranty
Flexible Financing Options
7 Days/Week Customer Support
Original price $7,600.00 - Original price $8,100.00
Original price $7,600.00 - Original price $8,100.00
Original price
$7,600.00 - $8,100.00
$7,600.00 - $8,100.00
Current price $7,600.00

Express payment options available at checkout:

Representative

We're Here To Help!

Have questions about compatibility, lead times, or product specs? Our team is here to help you get exactly what you need.

Jordan - Available Now

Product Description

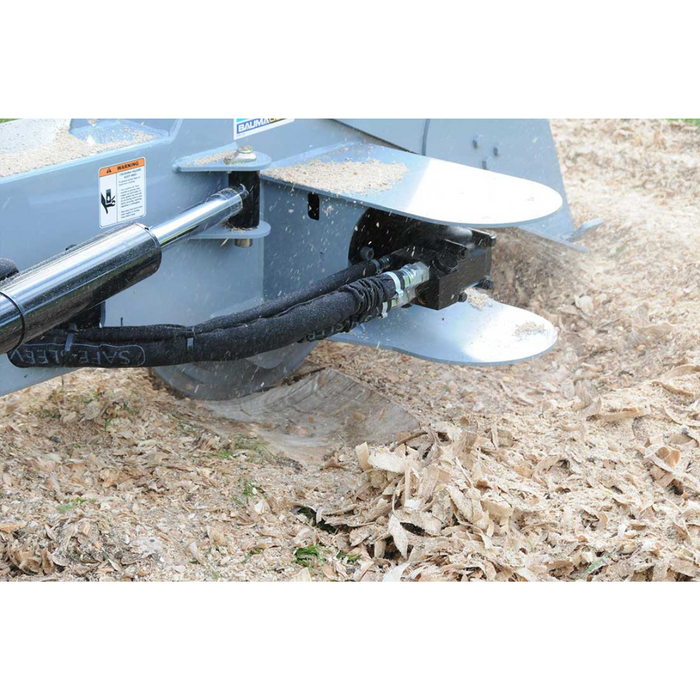

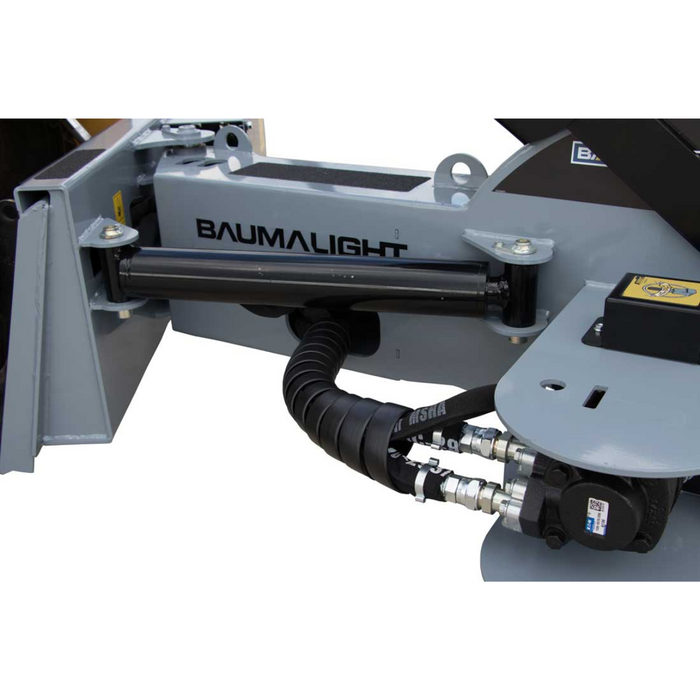

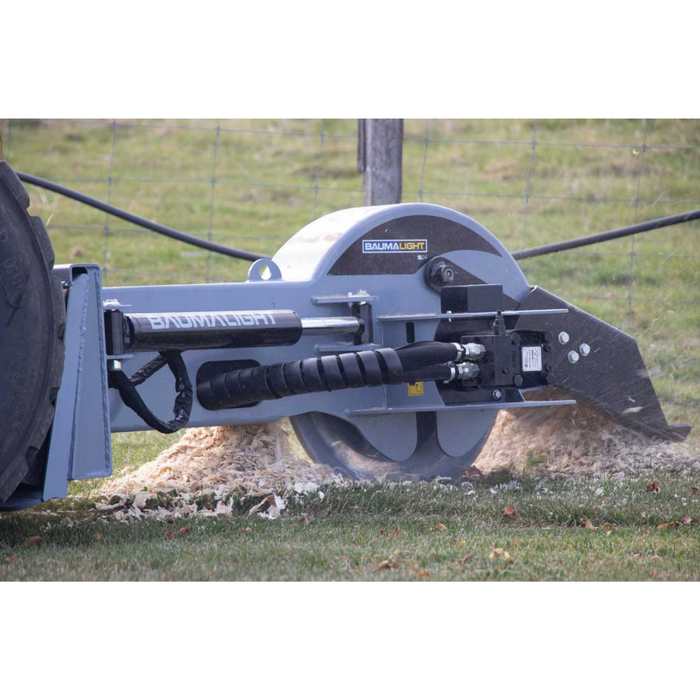

Precision Control with Hydraulic Swing and Flow Adjustment

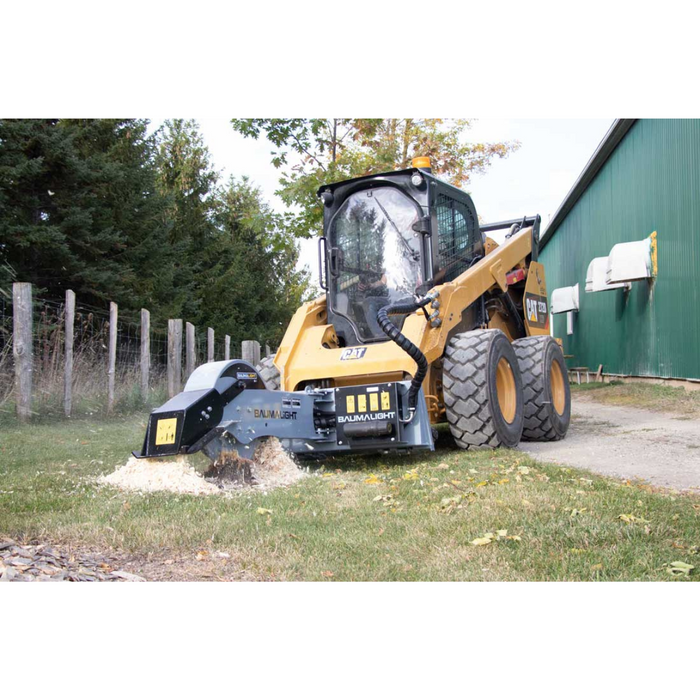

The Baumalight S24 Skid Steer Stump Grinder delivers enhanced performance with a 12V diverter valve controlling the hydraulic swing cylinder. This setup gives you refined control over cutting passes, especially when working on smooth surfaces like golf courses or rental applications. With a 15" cutting depth and 60° swing radius, the S24 grinds efficiently without frequent repositioning.

  • Hydraulic swing control for smoother cutting arcs
  • Flow Control knob adjusts pass speed to match machine power
  • Universal AUX plug standard for easy in-cab control
  • Optional hand control available for older machines ($276.49)
  • Multiple motor options available to match flow rate perfectly

Built for Power and Efficiency

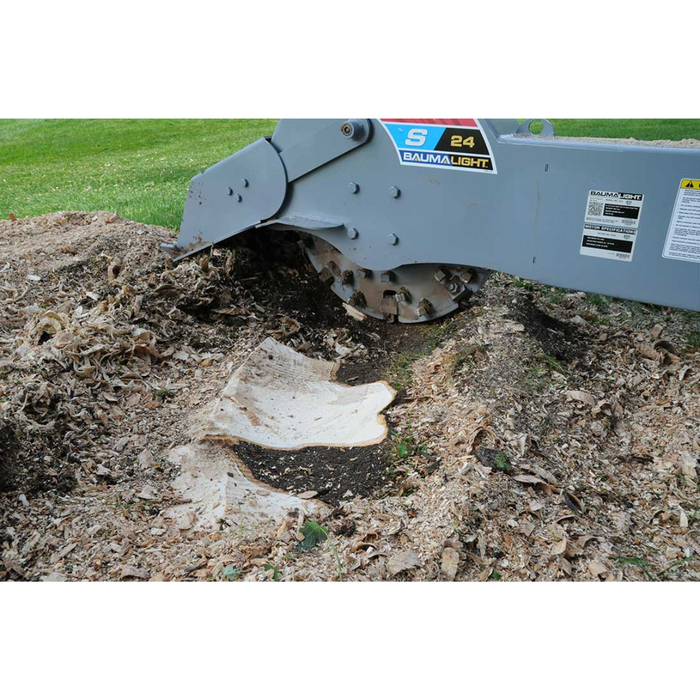

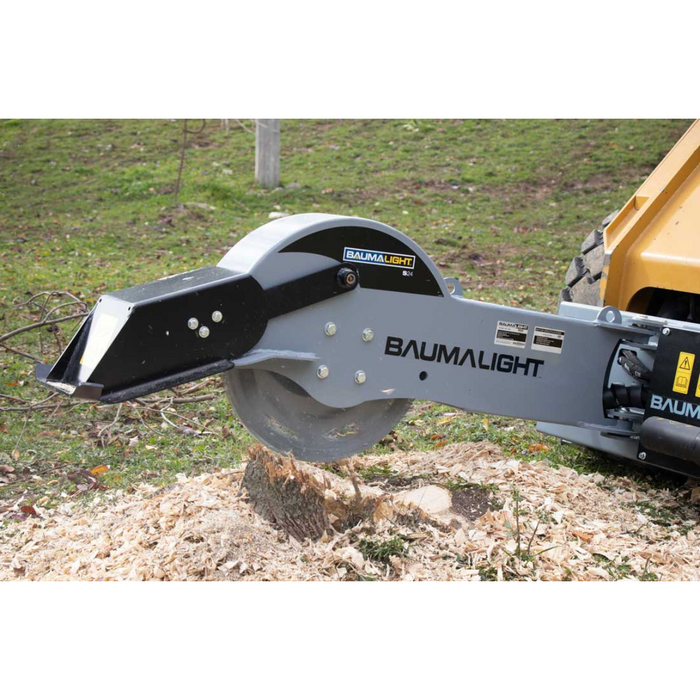

The S24 features a ¾" thick steel rotor and 52 rugged carbide-tipped teeth that extend 1-¼" from the rotor for superior cutting action. Designed to deliver maximum momentum and chip clearance, this grinder performs under pressure. The high tooth count means less wear per tooth, longer service life, and easier replacements.

  • Carbide-tipped teeth deliver dependable cutting, even in rocky soil
  • More teeth = less work per tooth = longer life
  • 6 FREE replacement teeth included with every purchase
  • Bolt-on tooth design makes swapping teeth quick and easy
  • Rotor design prevents flexing and powers through tough stumps

Durability, Debris Management & Low Maintenance

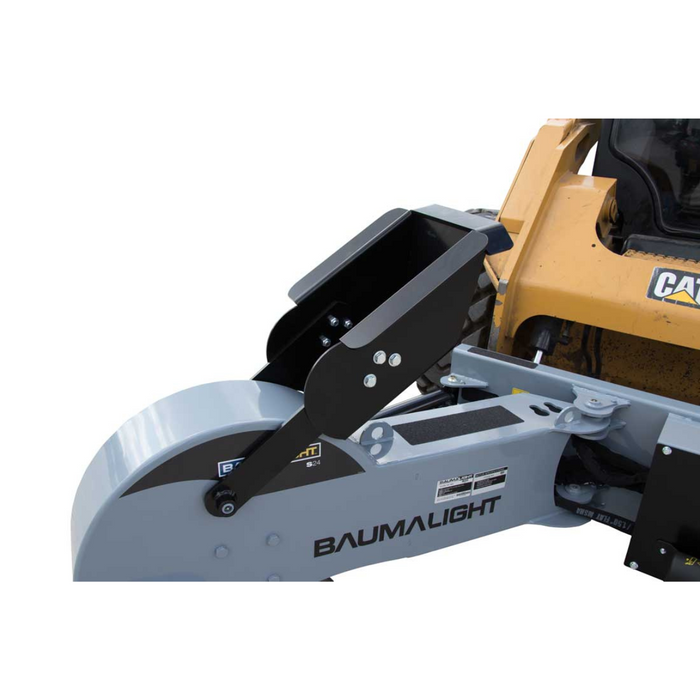

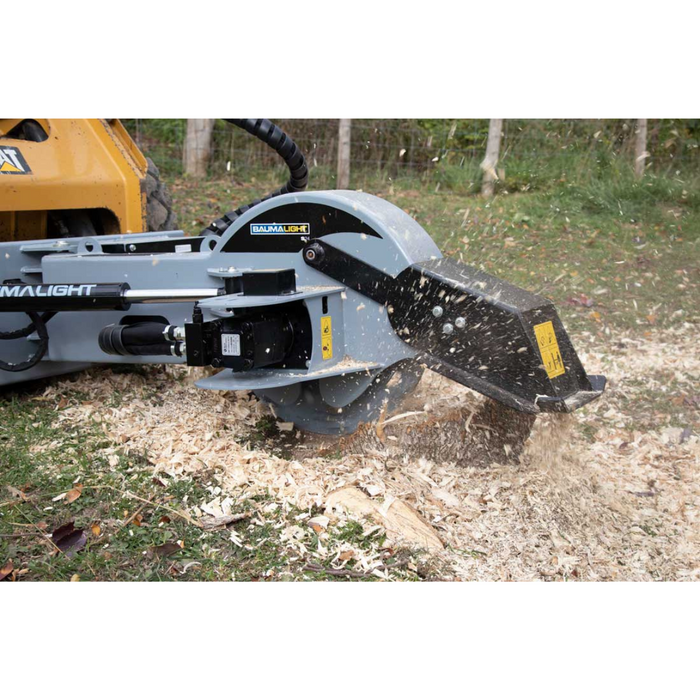

From its floating deflector for debris control to high-grade bushings and greaseable pins, the S24 is engineered for reliability in demanding conditions. The open design improves chip ejection while protecting key components from damage, reducing wear and tear over time.

  • Floating deflector protects the operator while clearing chips smoothly
  • 1-¼" extended teeth improve chip clearing and reduce heat buildup
  • Chrome-vanadium AISI 6150 bushings for long-lasting performance
  • Zinc-plated greaseable pins prevent corrosion and extend joint life

Specifications


Specification S14 S16 S18 S22 S24 S28 S40
Recommended HP Size Mini Skidsteer Mini Skidsteer 25–80 25–65 30–80 50–120 50–120
Maximum Carrier Size Check GPM & PSI
Motor Type Gerotor Bent Axis Piston Gerotor Gerotor Gerotor Gerotor Bent Axis Piston
Hydraulic GPM Check Stump Cutting Size Chart
Hydraulic Couplers Included Included Not Supplied Not Supplied Not Supplied Not Supplied Not Supplied
Rotor Size 18″ 18″ 24″ 24″ 24″ 24″ 24″
Number of Teeth 12 24 34 34 34 34 12
Tooth Part Number H3000 H3000 S1000 S1000 S1000 S1000 H3000
Tooth Construction High speed High speed Planer Planer Planer Planer High speed
Cutting Wheel Speed Depends on GPM
Cutting Height - Above Ground No limit
Cutting Depth - Below Ground 6″ 6″ 10″ 10″ 10″ 10″ 24″
Max Cutting Depth - Per Pass 2″ 2″ 5″ 6″ 6″ 6″ 2″
Maximum Horizontal Cut 12″ 12″ 22″ 22″ 22″ 22″ 22″
Swing Arc Self-feeding 56° Self-feeding 60° 60° 63° 85°
Over Torque Protection Relieve valve
Hitch 1″ pivot pins Mini Plate 1″ pivot pins Quick Attach Quick Attach Quick Attach Quick Attach
No. of Remotes Required - Hydraulic 1
Requires 12 Volt DC No Yes No Yes Yes Yes Yes
Minimum Required Amps - 30 amps - 30 amps 10 amps 10 amps 10 amps
Unit Weight (Shipping) 394 lbs 400 lbs 642 lbs 760 lbs 995 lbs 995 lbs 1,200 lbs

Motor options - stump cutting time chart


Skid Steer stump cutting times based on 24″ stump
Motor Case Drain PSI 12 GPM 15 GPM 20 GPM 25 GPM 30 GPM 35 GPM 40 GPM 50 GPM CC Motor Type / RPM
S508
Available for: S16
Critical 2,500 40 min 30 min 20 min -- 25 Piston
2700 RPM
3,000 30 min 25 min 15 min --
S445
Available for: S24
Recommended 2,500 -- 60 min 40 min 35 min -- 125 Roller Vane
520 RPM
3,000 -- 50 min 30 min 30 min --
3,500* -- 50 min 30 min 30 min --
S545
Available for: S24
Recommended 2,500 -- 80 min 40 min 35 min 25 min 20 min -- 130 Roller Vane
700 RPM
3,000 -- 70 min 30 min 30 min 20 min 16 min --
3,500* -- 60 min 30 min 30 min 20 min 16 min --
S645
Available for: S28
Recommended 3,000 -- 40 min 40 min 25 min 15 min 12 min 10 min -- 130 Roller Vane
540 RPM
3,500 -- -- 30 min 20 min 12 min 10 min 8 min --
S740
Available for: S40
Critical 2,500 -- 30 min 15 min 12 min 10 min -- 56 Piston
2100 RPM
3,000 -- 25 min 12 min 10 min 8 min --
3,500* -- 23 min 10 min 8 min 6 min --
S770
Available for: S40
Critical 2,500 -- 30 min 20 min 9 min 8 min 7 min 84 Piston
2000 RPM
3,000 -- 25 min 15 min 7 min 6.5 min 6 min
3,500* -- 23 min 10 min 5 min 4.5 min 4 min

* Motor will run at this PSI but excess pressure is dumping over relief.
